Making a Knuckle Joint

Recently I restored a beautiful drop leaf cherry table.

Most of it was intact and needed only a little restoration, but one element that really needed some help was the wooden hinge joint that had broken over its many years of use. The knuckle hinge allows the support legs to swing out so the loose leaf can then rest on top.

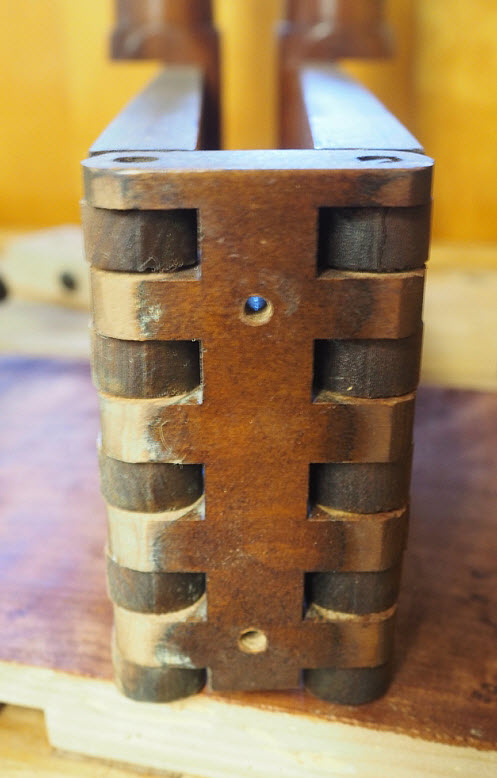

The knuckle joint in Fig. 1 is quite unique, in this article I will take you through the steps to make a more traditional hinge joint.
